Fitness center Stobreč
As-built survey as the basis for the conversion: virtual tour, floor plans, sections and installation points.
- Property
- Commercial space, conversion
- Location
- Stobreč
- Service
- 3D scan, 2D as-built drawings
- Delivery
- PDF drawings, 3D tour
Task
A commercial space was to be converted into a fitness center. This required reliable measurements of the existing building.
Service

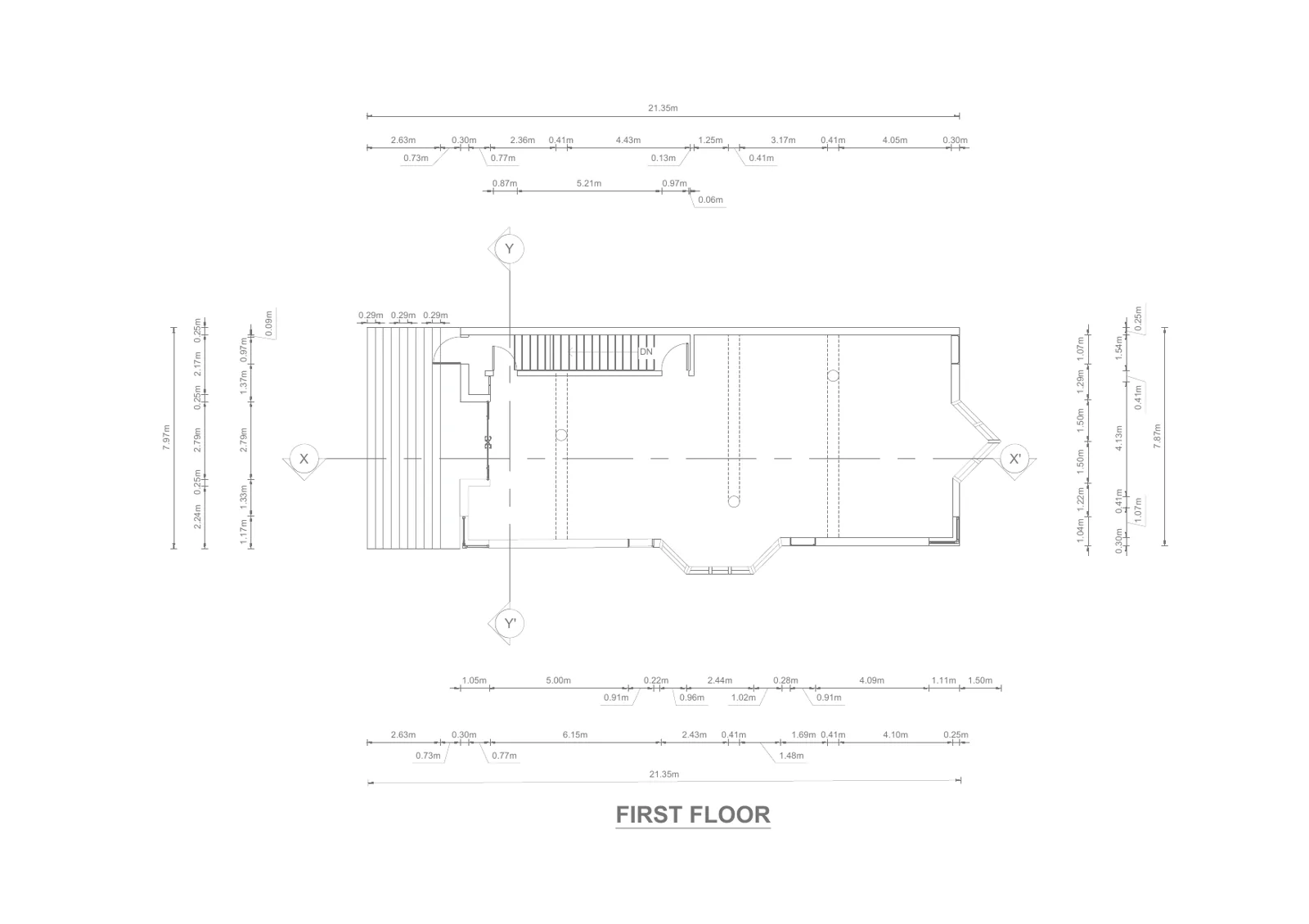

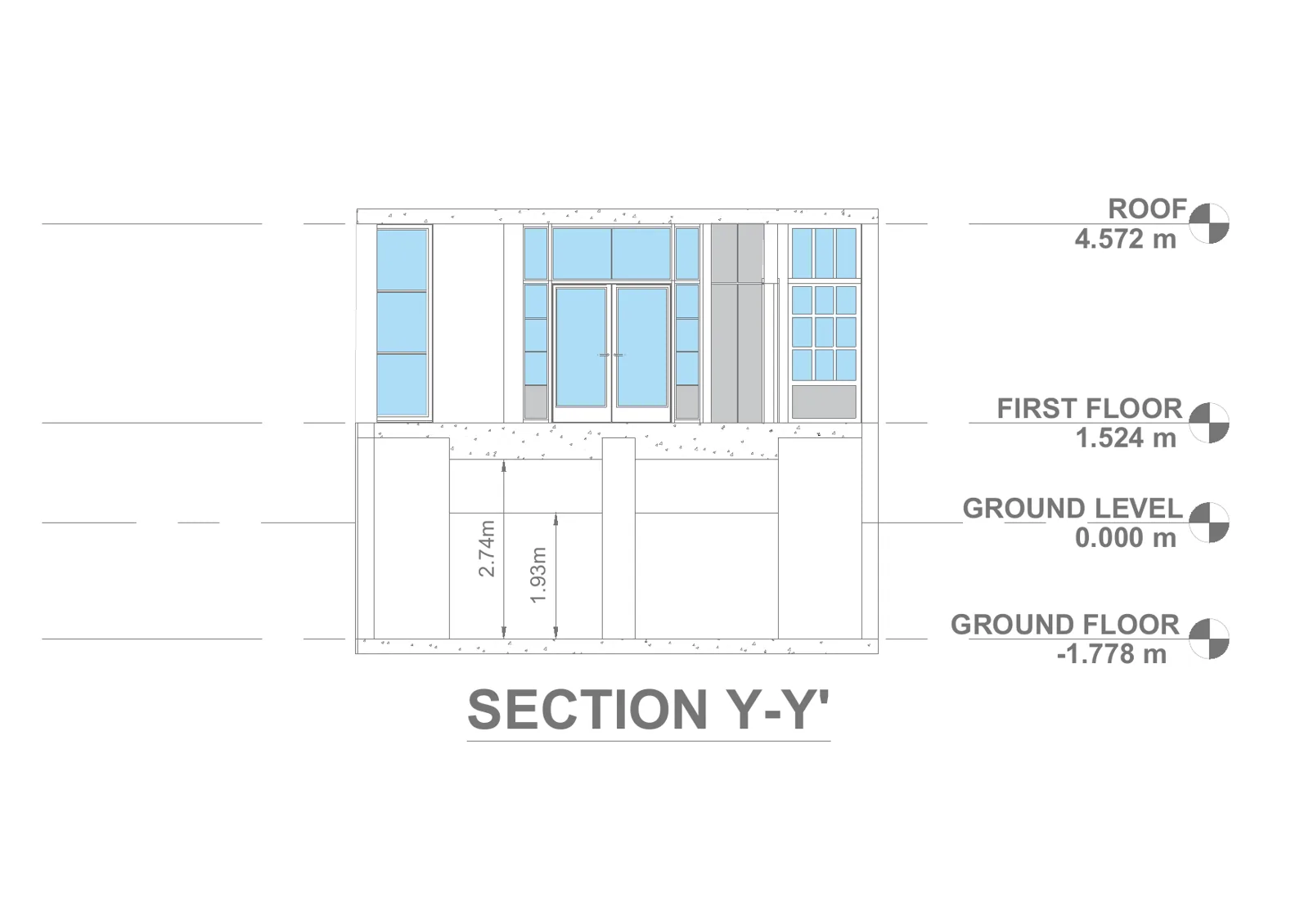

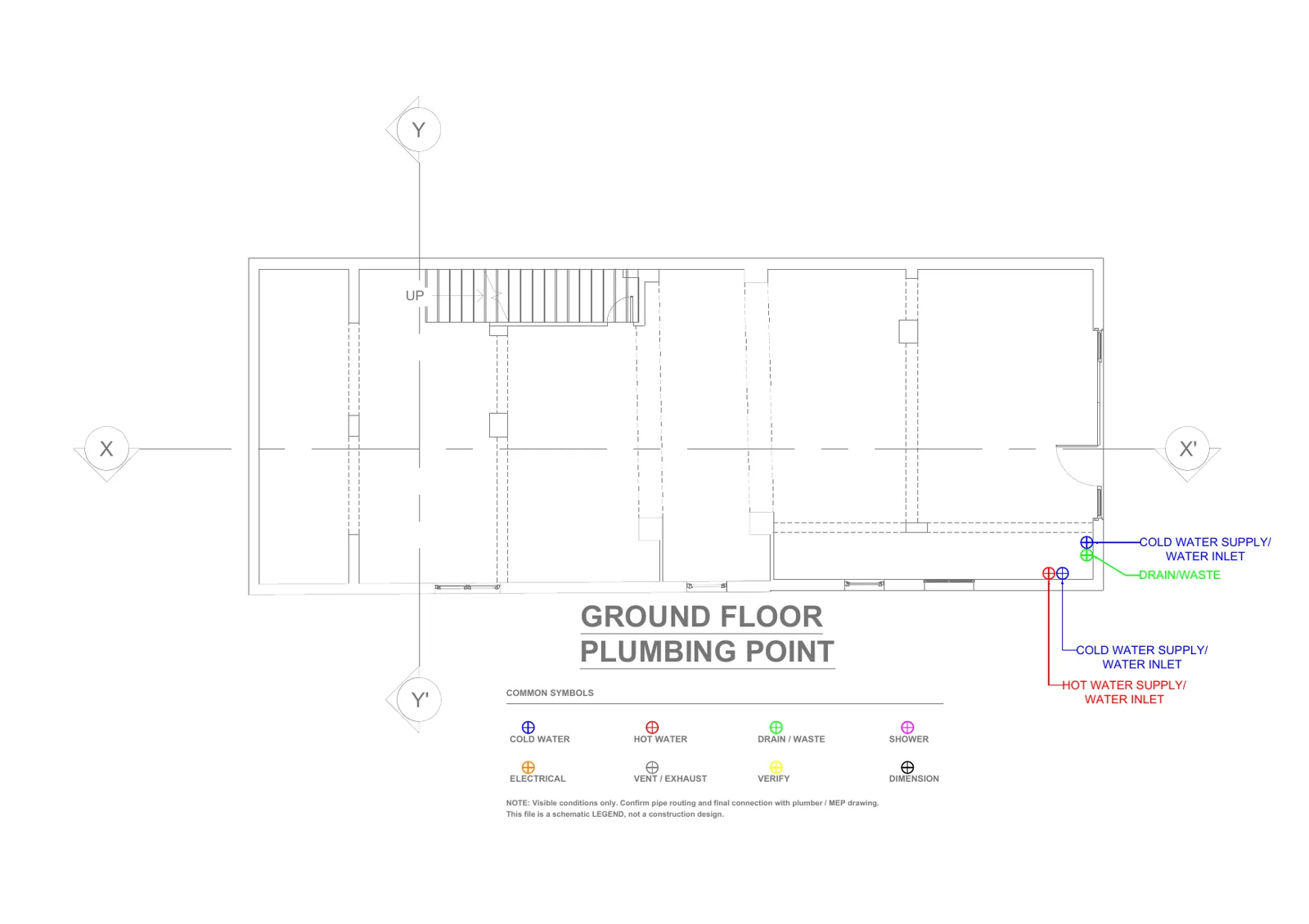

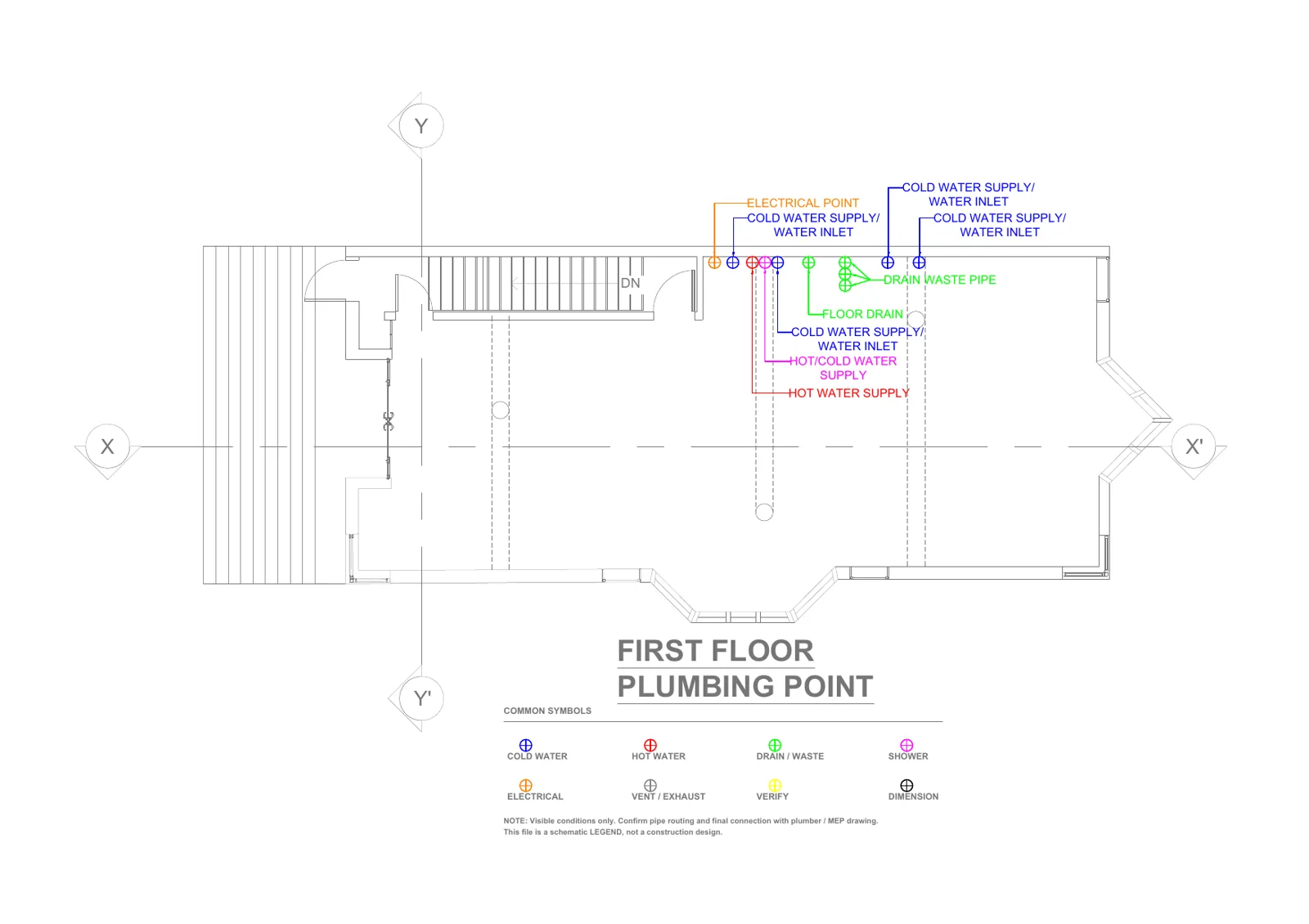

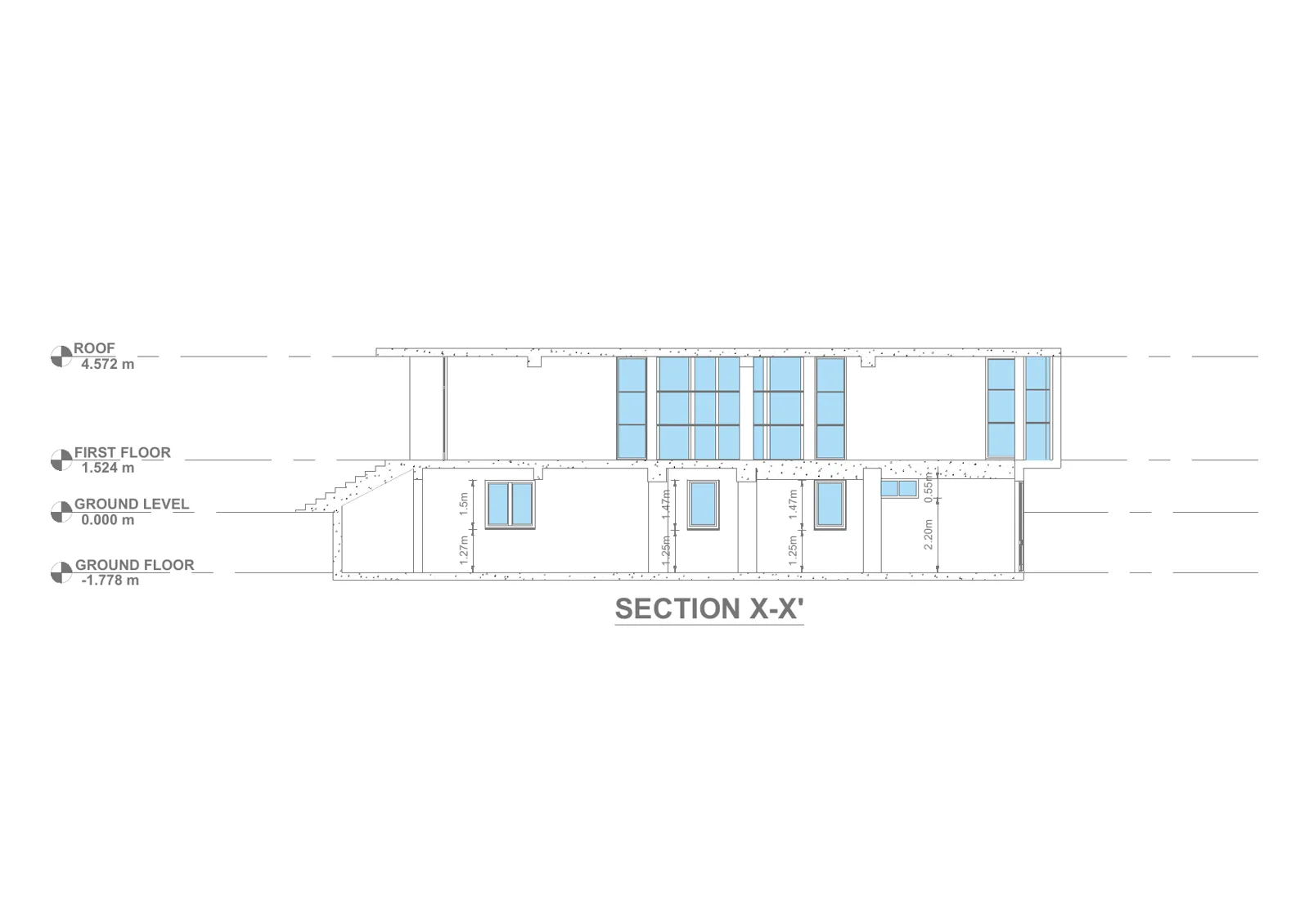

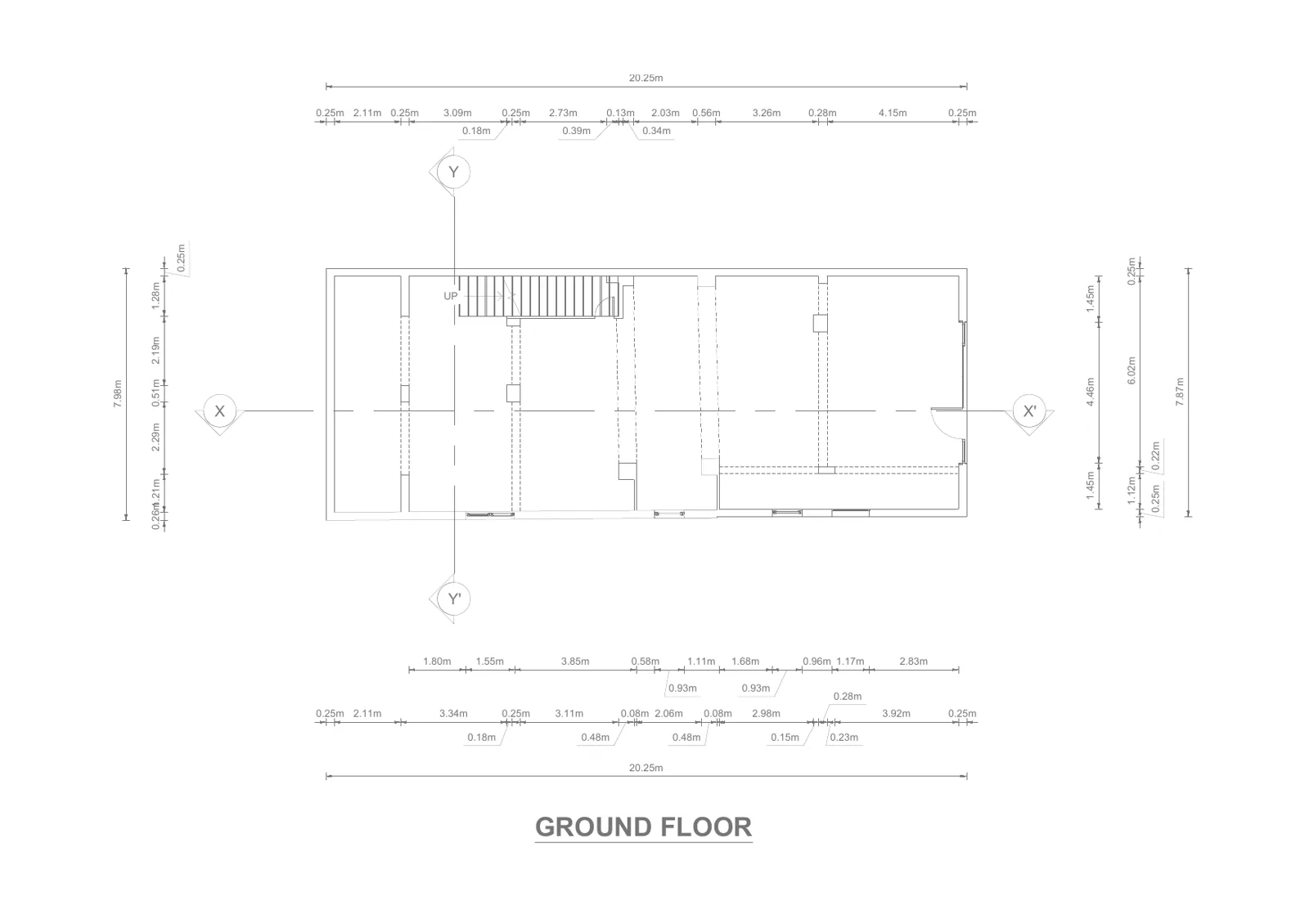

3D capture on site and, based on it, floor plans for the ground and upper floor, two sections and drawings with water and wastewater connections.
Result
Planners and tradespeople work from a shared data basis. The tour shows the condition before the conversion.
From as-built to conversion plan
Every drawing comes from the same capture. Use the arrows to browse the drawings.

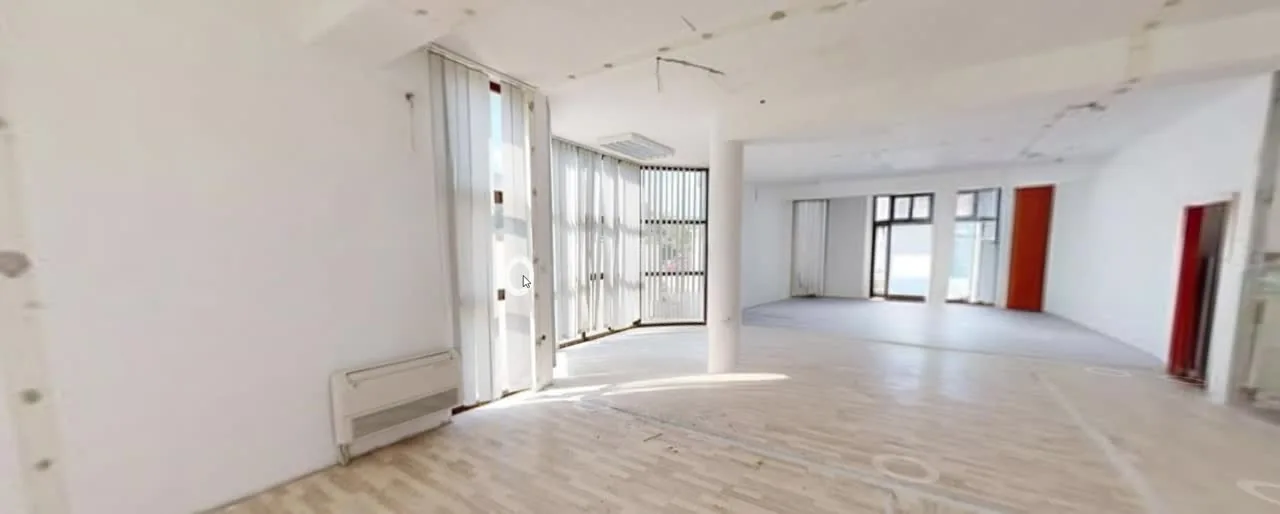

The virtual tour
The condition before the conversion as a walkable 3D tour.
